Description
Benchmark: Over the course of the last year, the Society of Automotive Engineers along with Tier 1 and Tier 2 suppliers have been carving out a new standard that defines what an industry-accepted LED headlight bulb would look like. While they have been hard at work creating whatÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â s now known as SAE J3145: Morimoto was hard at work taking notes and more importantly; developing a product in parallel. While LED bulbs still arenÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â t DOT approved for use in headlights in the statesÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'¢â‚¬Å¡ÃÆ'Æ’"Ã--¾ÃÆ'ƒÂ¬. if and when the time comes, the new 2Stroke 3.0 is already built according to the right recipe. For now, foreign markets and fog light users can enjoy the best LED headlight bulb available today! Superior Beam Quality: The advanced PCB technology at the core of the 2Stroke 3.0 sets a new industry benchmark emission surface interval of just 2mm total. The PCB core itself is just 1.0mm thick. The dielectric layer: 300um. The circuit pattern: 140um, and the Osram Oslon HKL351.TE LED chips: just .43mm each. Paired with the 1.03 x 4.33mm light-emitting surface area of the LEDs: this adds up to a total cubic volume of 4.46mm. At the end of the day, no LED bulb in the world more closely simulates the filament size of an incandescent bulb more accurately than the Morimoto 2Stroke 3.0ÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'¢â‚¬Å¡ÃÆ'Æ’"Ã--¾ÃÆ'ƒÂ¬.and for those in the know, this is critical when it comes to proper beam distribution. H11 Tension Spring: The H11/H9 version of the 2Stroke 3.0 has a particularly special bulb base thatÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â s specÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â d with an OE-standard tension spring. This pushes the entire bulb base downward with 5nm of force, resulting in a bulb thatÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â s been properly seated according to the needs of optics. The tooling required to produce these parts alone was extremely expensive. YouÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â ll be hard pressed to find another brand who cares enough to make that kind of investment on this often-overlooked feature. Optimized focal length: Each size in the 2Stroke 3.0 lineup has been painstakingly optimized for proper output in its designated application. The critical reference distance has been calculated based on the geometry of the bulb base and the footprint of the Osram HKL emitter. To ensure consistency, special tools were designed to quality-control the accuracy of each bulb as it comes off the production line. Most other LED fog light bulbs on the market use a ÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'‚¨set it and forget itÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'Æ’" reference distance across all sizes in the series, which is not the case here. 360 degrees of Rotation: The 2Stroke 3.0 LED bulbs feature a fully adjustable base. In order to fully utilize the optical facets in any reflector or projector: The light emitting diodes must face the 3-o-clock and 9-o-clock positions. Since no single standard exists across different headlight and fog light assemblies, all bulbs in the 2Stroke 3.0 range are fully adjustable. A geared step rotational adjuster mechanism is installed for all bulbs which twist-to-lock, offering adjustability in 15-degree intervals. An omni-adjustable rotation mechanism is utilized on all bulbs that are press-fit or clip into the housing. Thermal management: Once the bulb is installed, the high-speed fan contained within is completely sealed, making the 2Stroke 3.0 the first actively cooled LED bulb with a fan thatÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â s not susceptible to outside elements. Their unique internal circulation cooling system uses a 12,000-rpm cyclone fan to suck cool air into the body of the bulb and blow warm air out, back into the housing. On the intake side, cold air is sucked in past the sidewall of the PCB to exchange heat and is blown out the opposite side of the bulb. This effectively cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months. The cooling system on the 2Stroke 3.0 not only does itÃÆ'¢Ë†Å¡ÃÆ'Æ’"°ÃÆ'‚¬ÃÆ'¢"°Â s job to protect the longevity of the bulb, but serves up a bad-weather benefit not found elsewhere. DRL Drive: The LED Driver is configured to accept a wide range of input voltage, making them compatible with low voltage daytime running lights commonly found on modern vehicles. When the LED driver detects 6-9V of input: The system logic automatically switches to produce just 30% of the standard output. The low power drive rate of 250mA produces only 460lm per emitter and enables the 2Stroke 3.0 to produce a suitably low output volume as a daytime running light. In this mode, the cooling fan also shuts off to conserve power/lifespan. For vehicles with a PWM-based DRL signal, an inline PWM module that produces a clean DC6V will be required. The driver is completely potted, making it completely weather-proof. Note that the DRL-Drive function is only for use in non-US markets.
Tech Specs
Intensity: 780lm (DRL), 1,860lm @ 25C
Input Voltage: 6-9V (DRL), 9V-16V (Low Beam)
Power: 24W
Color Rating: 5700K (Cool White)
Light Source: Philips Lumileds Luxeon Z ES
Whats Included

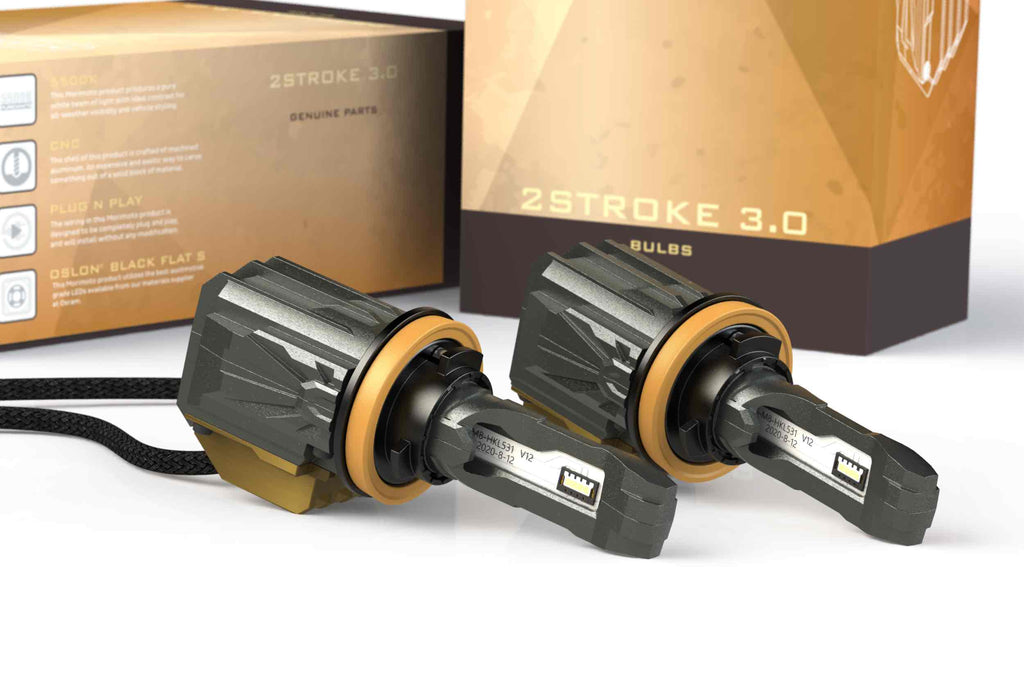

LED Bulbs: 1x Morimoto 2Stroke 3.0 (H11)
LED Drivers: 1x Morimoto 2S3 w/ DRL Drive
Wiring: H11 Plug and Play Inputs
Warranty: 3 Years
Compatibility
BASE/FITMENT: H11, H9, H8, and H16
Components
LED1523 x 2
